Product Details:
|
| Product Name: | Hybrid Inverter | Certificate: | CE ISO SAA TUV |
|---|---|---|---|
| Output Frequency: | 50/60hz | Application: | Off-grid Solar System |
| Maximum Efficiency: | 98% | Output Voltage: | 380/400V |
| Input Voltage: | 30VDC ~ 80VDC | Surge Power: | 6000VA |
| Battery Voltage: | 24VDC | Weight: | 14kg |
| High Light: | Household 5KW Solar Power System,Growatt 5KW Solar Power System,3000TL-48 HVM |
||

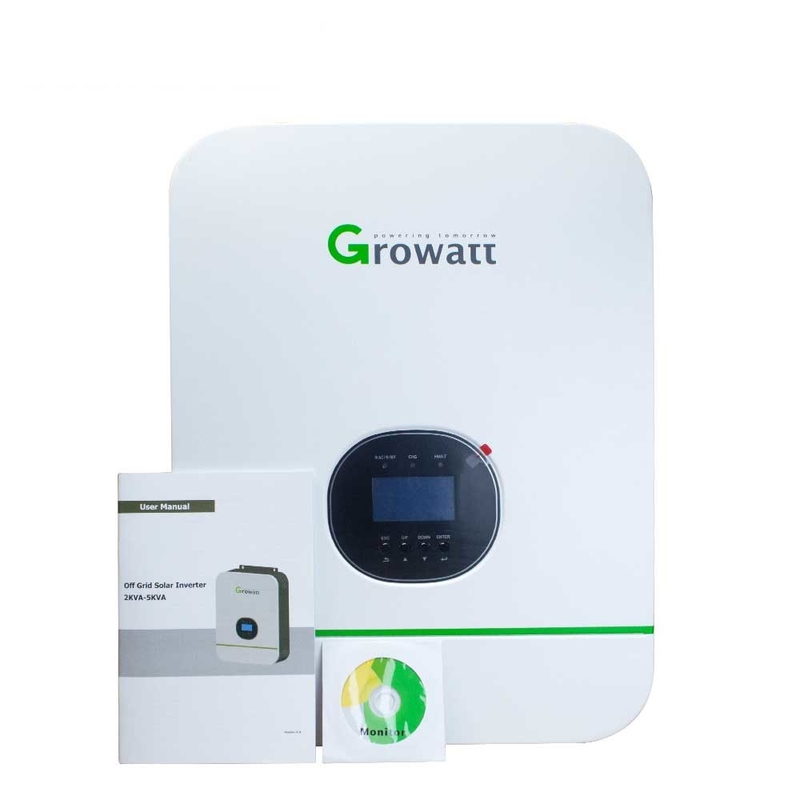

Household Solar Inverter hybrid inverter 3000TL-48 HVM 5KW for solar power system
1.Main Advantages
Parallel for Scalability
Integrated Mppt Charge Controller
Configurable Grid or Solar Input Priority
Optional WIFI/GPRS remote monitoring
2. Products Parameters
| Datasheet | SPF 3000TL HVM -48 |
| INVERTER OUTPUT | |
| Raied Power | 3000VA /3000w |
| Suger Capability | 6000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10ms(For Personal Computers); 20ms (For Home App;iances) |
| Maximum PV Array Power | 1800W |
| MPPT Range @ Operating Voltage | 60VDC ~ 448VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 30A |
| Maximum Efficiency | 98% |
| Standvy Power Consumption | 2W |
| Maximum AD Charge Current | 15A |
| AC Input Voltage | 230VDC |
| Sslectable Voltage Range | 170-280VAC(For Personal Computers);90-280 VAC(For Ho,e Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0℃-55℃ |
| Storage Temperature | -15℃-60℃ |
