Product Details:
|
| Cell Efficiency: | 17.45~20% | Application: | Solar Power Supply |
|---|---|---|---|
| Process Material Warranty: | 12 Years | Type: | PERC |
| Max. Voltage: | 17.85V | Norminal Max. Power: | 150W-180W |
| Weight: | 11.18Kg | Certificate: | CE/IEC/ISO/SAAR/PIB/CEC |
| High Light: | 150w high efficiency solar panel,160w high efficiency solar panel,180w monocrystalline solar panel |
||

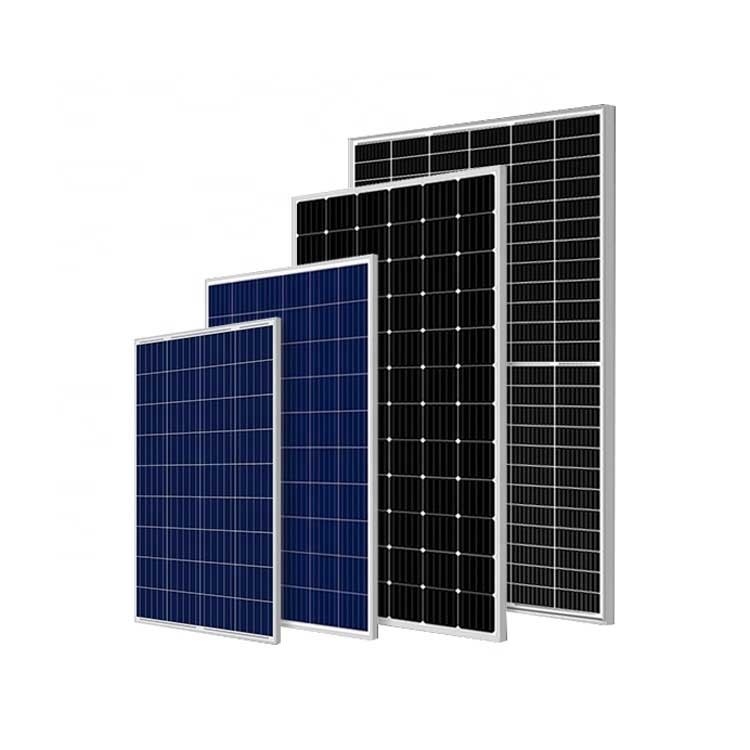

Solar Panels Mono Cell Solar Panel 150w 160w 170w 180w High Power Solar Module
1. Introduction
we have powerful technical support, modern production workshops with more than 10000 square meters and large production equipment and
have successfully obtained many honors such as CQC certificate of National Electrical Applicance, ISO 9001 international quality system
certificate, excellent and honest enterprise of China's solar PV engineering and 3A credit enterprise of China.
2. Main Advantages
① Multi busbar technology
② Adaptability to harsh environments
passed related tests on salt spray and high ammonia corrosion by the third-party certification.
③ Better resistance to hot spots
By optimizing the current design and working condition current, a better temperature coefficient and resistance to hot spots can be oachieved.
④ Load capacity
The whole component has passed the certification of wind load of 2400pa and snow load of 5400pa
⑤ Anti-PID guarantee
minimize the attenuation probability caused by PID phenomenon through battery perduction technology
optimozation and material contorol
⑥ Industry-leading linear warranty
12 yeras Process material warranty
25 years Line property
3. Electrical Specifications
| ELECTRICAL SPECIFICATIONS | ||||
| Model Item | JT150-24M | JT160-24M | JT170-24M | JT180-24M |
| Nominal Maximum Power | 150W | 160W | 170W | 180W |
| Optimum Operating Voltage | 17.85V | 180.8V | 18.12V | 18.15V |
| Optimum Operating Current | 8.41A | 8.85A | 9.38A | 9.92A |
| Open Circuit Voltage | 21.96V | 22.11V | 22.46V | 22.64V |
| Short Circuit Current | 8.61A | 9.05A | 9.70A | 10.19A |
| Module Effciency | 15.00% | 16.00% | 17.00% | 18.00% |
| Cell Effciency | 17.45% | 18.61% | 18.80% | 20.20% |
| Power Tolerance | 0 to +3% | |||
| Maximum Sytem Voltage | DC 1000V | |||
| Operating Temperature | -40℃~+85℃ | |||
| Maximum Series Fuse Rating | 15A | |||
| MECHANICAL DATA | ||||
| Cell Type | Mono 156mmx156mm | |||
| Cell Arrangement | 36 cells in series | |||
| Dimensions | 1480x680x35mm | |||
| Weight | 11.18kg(approx) | |||
| Frame Cover | 3.2mm tempered glass | |||
| Frame Material | Anodized aluminium alloy | |||
| J-Box | IP67,3 diodes | |||
| Cable | 2.55m㎡(IEC) / 12AWG(UL),900mm(650mm is optional) | |||
| Connectors | MC4 or MC4 compatible | |||
| TEMPERATURE CHARACTERISTICS | ||||
| Temperature Coefficient | -0.420% / ℃ | |||
| Temperature Coefficient | -0.346% / ℃ | |||
| Temperature Coefficient | 0.065% / ℃ | |||
| Norminal Operating Cell Temperature | 45.3±2℃ | |||
